Metexon MTX6 pellet extruder printing inside an industrial machine

METEXON Pellet Extruder Systems

Industrial Pellet 3D Printing

Metexon develops extrusion technology, software, material handling and complete production systems for industrial pellet-based 3D printing.

From developing a reliable printing process for a challenging material to building a dedicated production machine, we develop the elements of the process to work together.

Metexon MTX6 in  Metexon Viper 3D printer

The Metexon approach

Pellet 3D Printing Is More Than an Extruder

Reliable pellet-based 3D printing depends on the complete process.

The way a material is fed, melted and extruded matters. So do machine movement, printing parameters and the paths used to build the product.

For production, all of these elements have to work together reliably.

That is where Metexon focuses: combining extrusion hardware, material handling, software and process knowledge into a printing process designed around the material and the application.

Sometimes the solution is an MTX6 extruder integrated into an existing machine. Sometimes it begins with developing a process for a new material. And sometimes it leads to a complete production machine designed around one specific product.

Pellet extruder printing an open lattice structure in soft material

Lead application

3D-Printed Cushioning

A New Way to Design and Manufacture Comfort

Pellet 3D printing with TPU opens new possibilities for mattresses, seating and orthopaedic cushioning.

Instead of creating comfort only through combinations of conventional foams, manufacturers can design the internal structure of the cushioning product itself.

Softness, firmness and support can be changed locally. Open structures allow new approaches to airflow, cleaning and product construction. Product variants can be created digitally rather than developing a new mold for every change.

Metexon combines dedicated production machines, pellet-extrusion technology and specialized software to turn these possibilities into a repeatable manufacturing process.

Software-Defined Cushioning

Define Cushioning Performance Digitally

Metexon mx_path is a specialized slicer and toolpath generator for soft, open TPU structures, designed to work with MTX6 pellet extruders.

Mechanical response can be shaped with many slicing strategies. Depending on the application, mx_path can vary strand spacing, path direction, layer parameters, geometry and extrusion throughput.

Zones can be defined by Z ranges or by imported 3D models. Different strategies can then be combined with seamless transitions, creating continuous changes in softness, firmness and support throughout cushions and mattresses.

The result is a reliably printable structure with performance placed precisely where the product needs it

MTX6 integration

Made for MTX6

The toolpath and process workflow is purpose-built around the capabilities of Metexon MTX6 pellet extruders.

Covestro material profile

Desmopan® AIR Parameters

Specialized process parameters for Covestro Desmopan® AIR are included for a tested and repeatable cushioning workflow.

Metexon Matrix support

One Path, Many Heads

On Metexon Matrix, multiple printheads follow one path in parallel. A dedicated overlap strategy joins adjacent print regions without a noticeable transition in cushioning feel.

Discuss mx_path →
mx_path workflow visualizing toolpaths and variable cushioning zones

Complete production systems

Built for Production

A production machine should be designed around the product it has to manufacture.

Metexon Matrix is a dedicated industrial platform for high-throughput mattress and cushioning production.

Metexon Matrix multi-head production machine with MTX6 extruders and pellet feeding hoses

Dedicated Mattress Production

METEXON MATRIX

Metexon Matrix is designed specifically for large TPU mattresses and cushioning structures.

Multiple Metexon extruders operate simultaneously on the same product, allowing large structures to be manufactured much faster than with a conventional single-head process.

A standard nine-head Metexon Matrix can manufacture a complete mattress in approximately six hours.

Discover Metexon Matrix

Partner systems & integrations

Powered by Metexon

Production platforms, upgrade paths and OEM integrations built around Metexon pellet-extrusion technology.

Metexon extrusion technology is not limited to Metexon production systems. The compact MTX6 architecture allows machine manufacturers and system integrators to add pellet extrusion to their own 3D-printing platforms.

Elegoo OrangeStorm Giga converted for pellet 3D printing with the Metexon MTX6 upgrade kit

Accessible large-format entry

OrangeStorm Giga Upgrade Kit

A complete MTX6 upgrade package for technically experienced users converting an Elegoo OrangeStorm Giga to pellet extrusion.

Explore the Upgrade Kit →
Vidar by Hjort Creations printer using Metexon extrusion technology

Ready-to-use cushion production

Vidar by Hjort Creations

A production-oriented platform combining Hjort Creations machinery with Metexon extrusion, automatic pellet feeding and the Metexon TPU cushioning process.

Certified by Metexon for TPU cushion printing.

Discover Vidar →
CR-3D P65X+ pellet printhead mounted on the gantry inside the printer

Industrial OEM integration

CR-3D P65X+

A proven CR-3D industrial printer platform paired with the high-performance Metexon MTX6 pellet extruder.

Explore CR-3D P65X+ →

Bring Metexon Technology to Your Machine

See how MTX6, PTX1 and Metexon process support can be integrated into partner and OEM platforms.

Explore Powered by Metexon →

Pellet extrusion technology

The Technology Behind the Process

The same core Metexon technology used in our production systems is also available independently for integration into other machines and research platforms.

Metexon MTX6 compact pellet extruder printing inside an industrial machine

Pellet Micro Extruder

Metexon MTX6

MTX6 is designed for precise pellet extrusion in a compact and lightweight format.

It is particularly suited to materials that can be difficult to process with filament systems, including very soft polymers, brittle materials and filled compounds.

Explore MTX6 →

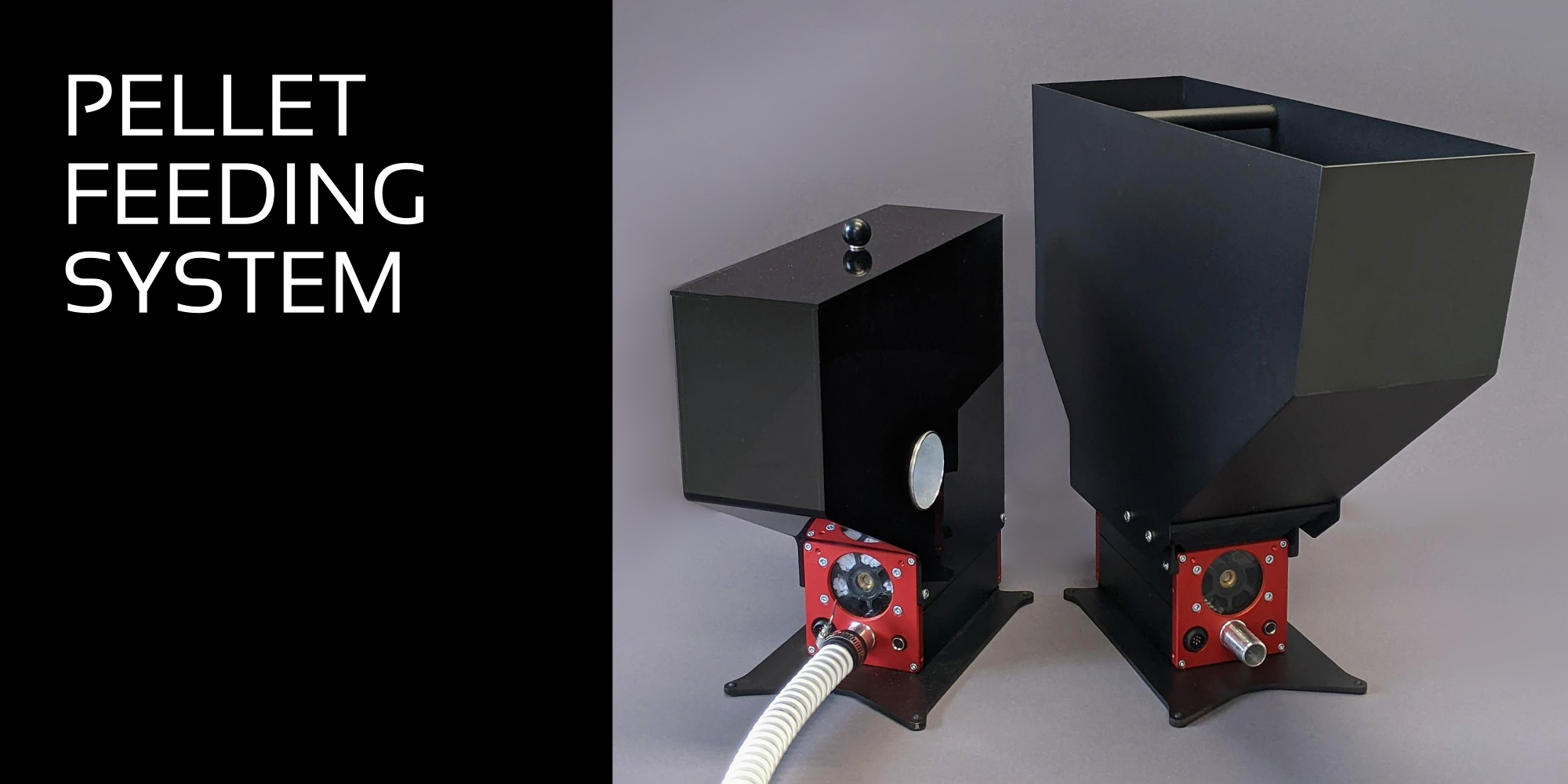

Two Metexon PTX1 automatic pellet feeding units

Automatic Pellet Feeding Made Simple

Metexon PTX1

PTX1 automatically supplies pellets to the extruder using an integrated blower and material-level sensing.

No external compressed-air system is required.

Explore PTX1 →

Material & process development

You Bring the Material. We Develop the Printing Process.

Pellet-based 3D printing, technically known as Fused Granulate Fabrication (FGF), is far more than finding the temperature at which a polymer melts. Material feeding, screw geometry, extrusion temperature, flow rate, nozzle configuration, printing parameters and toolpaths must work together as one reliable process.

Metexon develops this process with customers specifically for Metexon systems — from an initial feasibility test and material evaluation through to a production-ready setup. Where needed, the work includes specialized screw geometries, feeding solutions and application-specific toolpaths.

A soft, flexible printed strand bending without breaking
Very soft materials
A brittle printed part cracking and splitting apart
Brittle materials
Rough, granular fragments of a fiber-filled polymer compound
Filled polymers
White pellet granules pouring into a pile, representing new material formulations
New formulations

You bring the material. We develop the FGF process.

Develop Your FGF Process

Custom extrusion engineering

When Standard Technology Isn't Enough

Not every extrusion challenge can be solved with a standard product.

For specialized industrial applications, universities and research institutes, Metexon develops custom extrusion systems around the material and process requirements.

This can range from a specialized screw or feeding concept to a completely new extruder architecture.

Discuss a Custom Extrusion Project →
EtherCAT I/O modules wired in the control cabinet of a Metexon extrusion system
Technical drawing of a Metexon extruder screw with dimension annotations

About Metexon

Developed and Built in Germany

Metexon is based in Grafing, east of Munich, Germany.

Our work combines mechanical engineering, extrusion technology, electronics, software and additive-manufacturing process development.

The team works directly on the technologies behind Metexon products — from extruder and screw development to machine construction, electronics, software and application development.

For customers, that means direct access to the people developing the technology rather than a hand-off between unrelated hardware, software and engineering suppliers.

The Team

Portrait of Rainer Szalata from Metexon

Rainer Szalata

Development

Portrait of Tobias Gutmann from Metexon

Tobias Gutmann

Production

Portrait of Andreas Kahler from Metexon

Andreas Kahler

Business Development & Software

Portrait of Uli Köhler from Metexon

Uli Köhler

Electronics & Software

Visit / Find Us

Grafing, Germany

East of Munich.

View on OpenStreetMap →

News & events

What’s Happening at Metexon

Metexon MTX6 pellet extruder printing a lattice structure, still from the Made with Layers Formnext 2025 video

Video

Made with Layers at Formnext 2025

Thomas Sanladerer (Made with Layers) visited the Metexon booth at Formnext 2025. His Formnext video features the MTX6 pellet extruder and the PTX1 pellet feeding system.

Watch on YouTube →

Start a conversation

What Do You Want to Produce?

A pellet 3D-printing project can begin with a material, a product or a production challenge.

Tell us what you are working on. We can discuss whether the right solution is an existing Metexon system, a cushioning production platform, process development or a custom engineering project.
